Descrizione

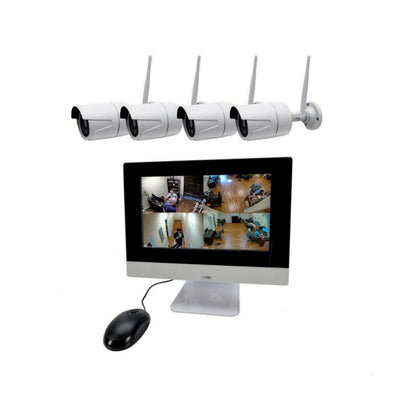

Kit 4 Camera + Monitor - 10"Inch, Camera Set, DVR, 4 Channels, HD, Mouse, Complete Kit

Characteristics:

  • LCD NVR Specifications: LCD screen
  • Display size: 10 inches
  • Resolution: 1024(H)×600(V)
  • brightness: 250cd/?
  • System: Main Processor: Hi3520D V200
  • Operating system: Linux Embedded
  • System resources: Simultaneous multi-channel real-time recording, recording, playback, network operation, USB supported
  • NVR & Camera: Signal transmission mode: Support Wireless/wired
  • Frequency range: 2.4G WiFi
  • Cameras Supported: 4 Channels
  • Video: Video input (CAM): 4*960P
  • Video compression: H.264
  • Recording resolution: D1/960H/720P/960P
  • Playback quality: 960P
  • Motion detection: Support
  • Storage & Backup: Space occupation: Video: 960P 25~30G/day * channel
  • Audio: 691.2M/day * channel
  • Storage records: HDD Network
  • Backup mode: Network backup, USB hard disk
  • External Interface: Antenna: Built-in
  • Network interface: 1*RJ45 10M/100M, self-adaptation
  • USB interface: 1*USB2.0 ports
  • HDD: 2.5” HDD Optional: 500GB/1TB/2TB/3TB/4TB 1 SATA (Up to 4TB for each disk
  • General: Network Protocol: Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP lookups, Alarm Center, etc.
  • Power: DC 12V/2A
  • Energy consumption: ? 24W (Including HDD)
  • Working Environment: Temperature:-5?-+55,
  • Humidity: 10% ?-90% RH,
  • Atm: 86kpa-106kp
  • Dimensions: 288mm (W) * 252mm (H) (with stand)
  • Weight: ?1kg (with HDD/Without packaging

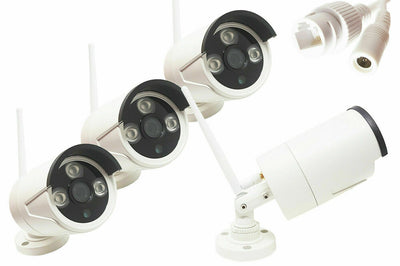

  • Technical Characteristics OF THE CAMERA: resolution: 1.3 megapixels
  • Sensor: 1/3” Scan Sensor
  • S/N Ratio: >39.1 dB
  • Resolution: 1280×960 4:3
  • Minimum illumination: Color: 0.1 Lux B/W: 0.01 Lux
  • Lens: 3.6mm
  • OSD: Date & Time and Title
  • Day & Night: Auto/Color/BW
  • 3D-DNR: Auto
  • Mirror/Flip: On/Off
  • Regional Privacy Shelter: 4 Selectable Zone
  • Smart stream: Dual-stream: 1280×960 @ 15fps; 640×360 @ 15fps
  • Power: DC12V-1A

The Kit Includes:

  • 4CH NVR Receiver with Integrated 10.1 Inch Monitor.
  • x4 960p HD cameras
  • x 1 Power Supply for NVR Receiver
  • x 4 Camera Power Supplies
  • x 1 SELF-INSTALLING KIT
  • x 1 Mouse
  • Instructions
