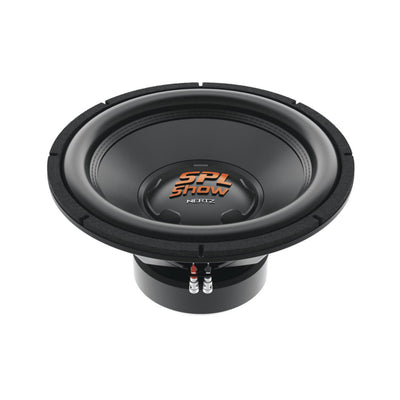

Hertz SS 15 D2 - Subwoofer 380mm, 2400w, Double Coil 2+2Ohm SPL Show

Hertz SS 15 D2 - Subwoofer 380mm, 2400w, Double Coil 2+2Ohm SPL Show

Article Code: SS 15 D2

Hertz SS 15 D2 380mm subwoofer from the SPL SHOW series is suitable for SPL competitions and reaches a maximum power of 2400W

The new SS 12 D2 and SS 15 D2 subwoofers, with a diameter of 30 cm (12 inches) and 38 cm (15 inches) respectively, are eager to thrill enthusiasts with their power.

They have a double-layer progressive spider reinforced suspension system that maintains constant performance over time, especially in heavy use typical of basses.

Heat dissipation is essential for this type of use and has been maximized thanks to careful design

The use of a robust 75 mm (3 inch) dual winding (2 +2 Ω) voice coil developed in 4-layer configuration

on a stand with ventilation holes allows the SS 12 D2 and SS 15 D2 to handle 2000W and 2400W of peak power respectively!

They are subwoofers designed for optimal heat dissipation and high mechanical resistance.

Unpressed paper cone with the addition of cotton fiber: it is the ideal compromise between rigidity and lightness, essential for high sensitivity value.

The suspension and leadwires are oversized to withstand the very high excursions generated by the massive ferrite motor.

The push connectors accept cables with sections up to 12 AWG, for a practical and safe connection, suitable for the high currents involved.

Characteristics

1. Dual 75 mm voice coil (2 + 2 Ω) developed in 4-layer configuration on support with ventilation holes for a peak power of 2400 W.

2. Double layer spider with progressive profile for maximum performance consistency over time.

3. Multi-layer foam surround to ensure very high excursion, essential for generating high SPLs during Bass Wars.

4. Large suspension and conductors to withstand very high excursions.

5. Oversized ferrite magnet assembly for maximum control.

6. 12 AWG high current Nickel-plated plug-in connectors for convenient and safe use.

7. Unpressed paper cone with added cotton fiber for maximum sensitivity.

• Size mm (in.) 380 (15)
• Power Handling - Peak W 2400
• Power Handling - Continuous W 1200
• Impedance Ω 2 + 2
• Sensitivity dB SPL 88
• Voice coil Ø mm (in.) 75 (3)
• Xmax mm 15.4
• X-mech mm (in.) 10.6 (0.42)
• D Ω 0.96
• Fs Hz 31
• Vas l 68.83
• Qts 0.61
• Qes 0.66
• Qms 7.4
• Spl dB 88
