Hertz CK 165 L - 2 Way Kit, CENTO Series, Diameter 165mm, 300w

Hertz CK 165 L - 2 Way Kit, CENTO Series, Diameter 165mm, 300w

Article Code: CK 165 L

The Cento line expands with the C165 L woofer, characterized by the use of non-pressed paper for the cone membrane,

a choice that gives this component a natural sound, with solid and controlled low frequencies.

The strengthening of the magnetic group together with the specific large-travel voice coil allows the excursion of the woofer to be maximized

maintaining maximum control even in the most demanding musical passages.

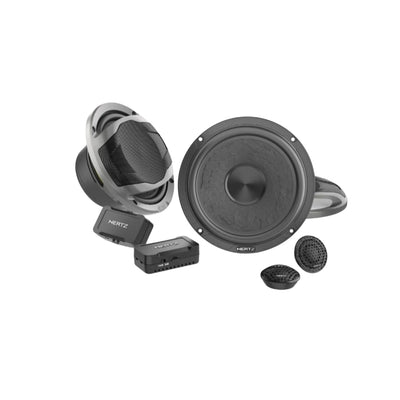

The CK 165 L system consists of the C 165 L woofer, the C26 tweeter and the crossovers dedicated to the CCX 2W woofer and the CCX 2T tweeter, made with selected components.

The ultra-compact dimensions of the crossovers and cable connections offer the specialist greater freedom during installation.

The tweeter filter is 12 dB/oct. with two attenuation levels while for the woofer, thanks to its regular frequency roll-off, at 6 dB / oct. made with a high diameter copper coil

it is used to the advantage of reduced electrical losses and therefore efficiency at low frequencies.

Immersive low frequencies and impressive power handling make the CK 165 L the perfect system for fans looking for strong thrills in the car cabin.

TECHNICAL SPECIFICATIONS

• D mm 131.5
• King Ohm 3.2
• Fs Hz 60
• The mH 0.23
• Vas I 13.66
• Mms g 14.2
• Cms mm/N 0.52
• BL T*m 4.9
• Qts 0.60
• Qes 0.70
• Qms 3.8
• Spl dB 91

Component

• System
• Size mm (in.) 165 (6.5)
• Power Handling - Continuous W 100
• Power Handling - Peak W 300
• Impedance Ohm 4
• Tweeter diaphragm mm (in.) 26 (1)
• Woofer Voice Coil Ø mm (in.) 25 (1)
• Tweeter Voice Coil Ø mm (in.) 20 (0.8)
• Sensitivity dB SPL
